Installing Session & Web Session Proxy Component

The proxy server is a hardened and monitored device that provides controlled means of access between two dissimilar security zones. In case, a person wants to access a resource that is located in a dissimilar security zone, there needs to be a device or a connector that provides a secure link or a tunnel to access the resource. A proxy server can be used as a single traffic audit point or a means to manage user accounts.

Sectona Web Access component has inbuilt Embedded Proxy, Session Proxy and Web Session Proxy components. This section describes the procedure for installing additional or alternate session proxy on different zones or servers. Sectona PAM offers external proxy component which can be used as a decoupled component to deploy either in different network segments or on a dedicated PAM Proxy server.

Before You Begin

  • You have valid login details of Sectona PAM administrator user

  • You have administrator privileges on the server you are installing the Session Proxy component.

Installing Sectona Vault Session Proxy Host

Download the Sectona Proxy Host Installer. You will receive a copy of installation from Sectona Support team. Contact the support team for issues at support@sectona.com.

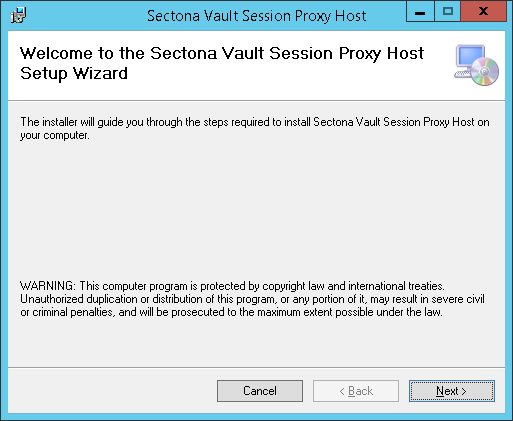

Launch the Sectona Proxy Host setup application. Once you run the application, you will be greeted with a Welcome page. Click on Next to continue.

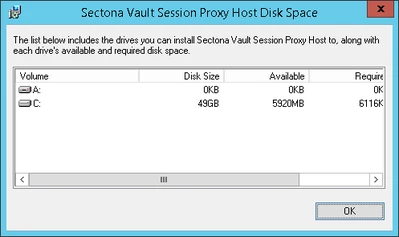

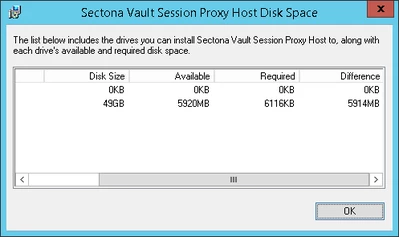

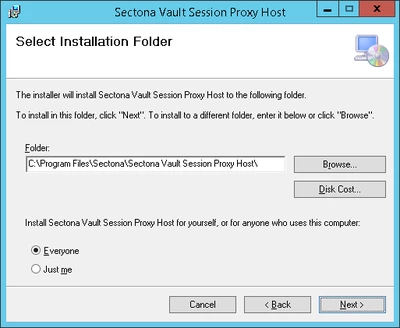

Now select the installation path for the application by clicking on the Browse button. To check the required disk space, click on the Disk Cost button. You can install the Sectona Vault Jump Host either for yourself or anyone else who uses the computer by clicking on Just me or Everyone respectively. Click on Next to continue. While Sectona Proxy can be installed on default path, it is recommended to connect with Sectona support team to deploy the External Proxy component as per Sectona best practices.

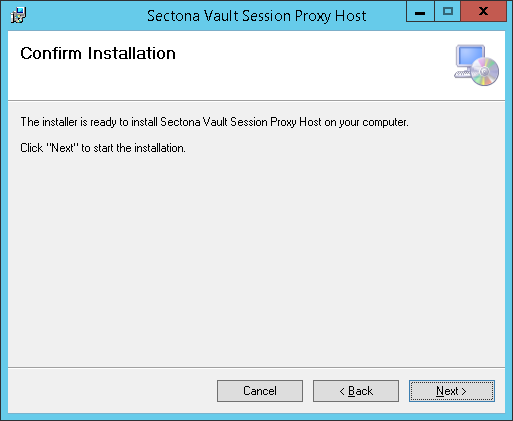

Click on Next to confirm the installation.

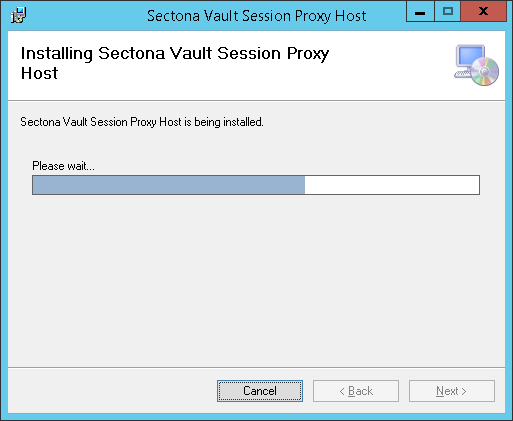

The installation process begins.

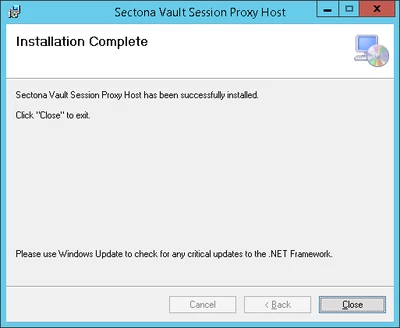

Once the installation is complete, click on Close to exit.


You need to configure the proxy host server to communicate with Web Access . Refer to section Proxy Host Server in the Sectona PAM System configuration.
